fabrication thread

ese13 said:
does anyone know hot to and what are the procedures to make the mold lay the sheets and use the resin? i want to learn hot to make my own stuff.
Click to expand...

i make lip wings and copy bumper molds dont have the money to actually start producing them yet but i made the molds its alot more work then you think you cant just learn how to make parts reading about it on the interwebs ive been doing fiberglass work for like 9 years. Its also hard to get the air bubbles out between layers in time so that the part is flat and rigid

I need some work done to my Rx7 exhaust. Im gonna get a racing beat header and connect it to an STI muffler (or have a dual exhaust) but I'll need somebody to fab up the piping in between. Who would you guys recommend??

Wow I just saw this thread pretty cool shit nice work guys will post pics when I get back to the shop there is some in my roll cage thread Also Jerry u can move a tig machine to the car they even make wireless pedal now and the new dirversion 180 has it on the torch. Also any one have the diversion 180 or dynasty 220dx?

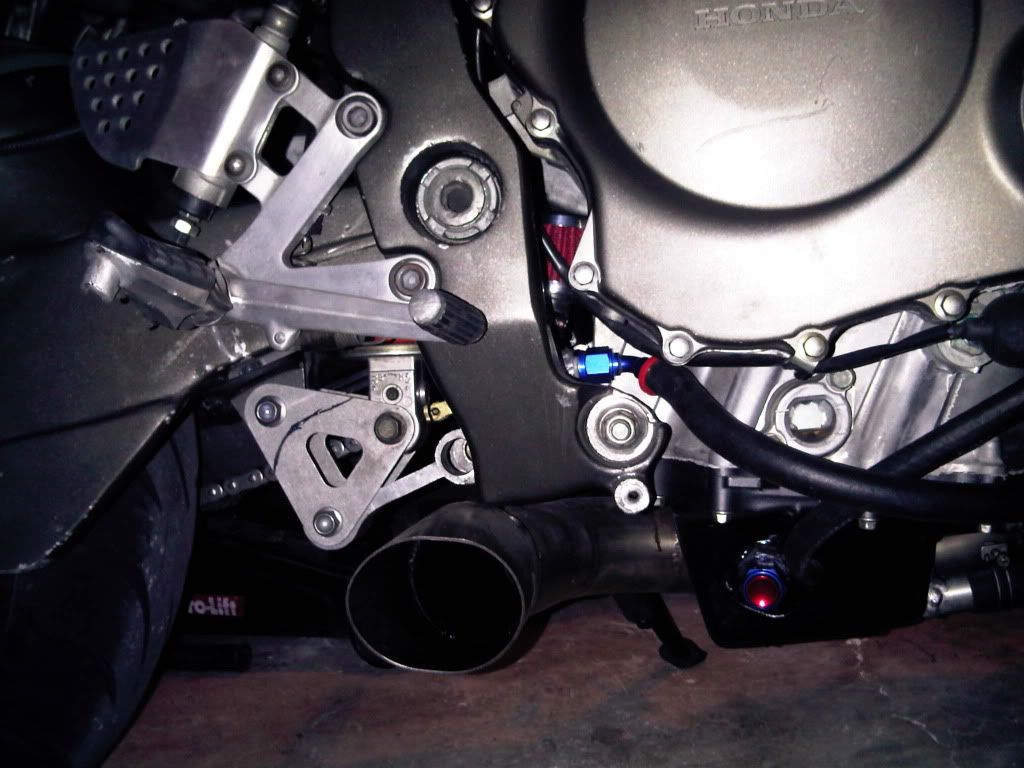

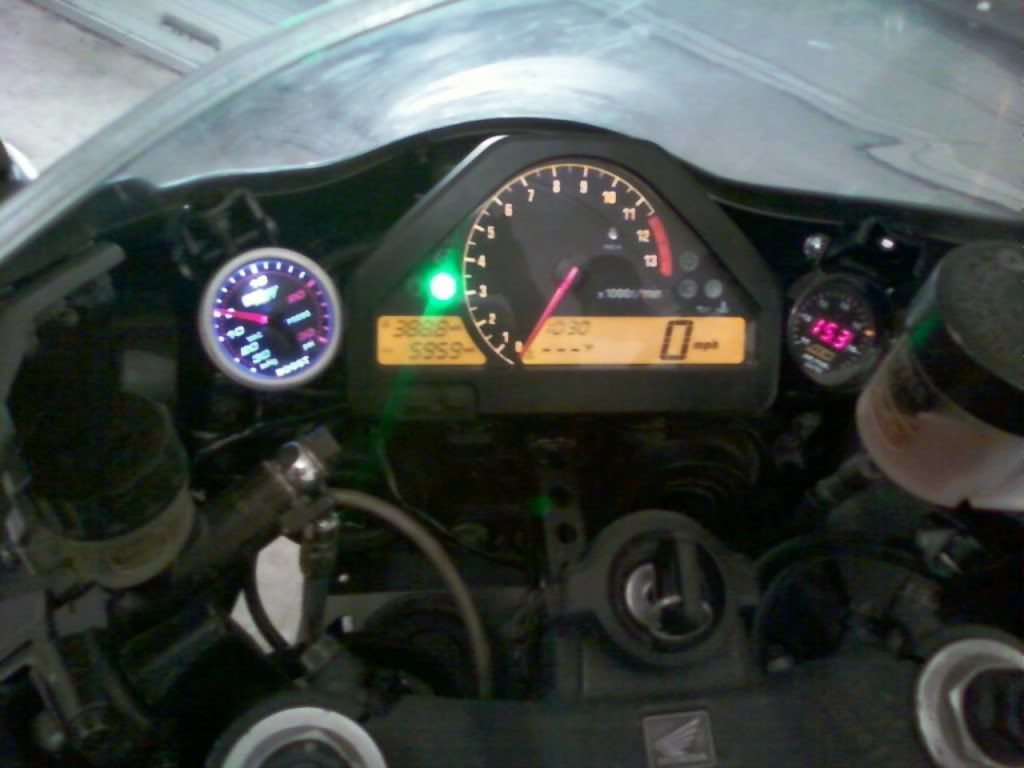

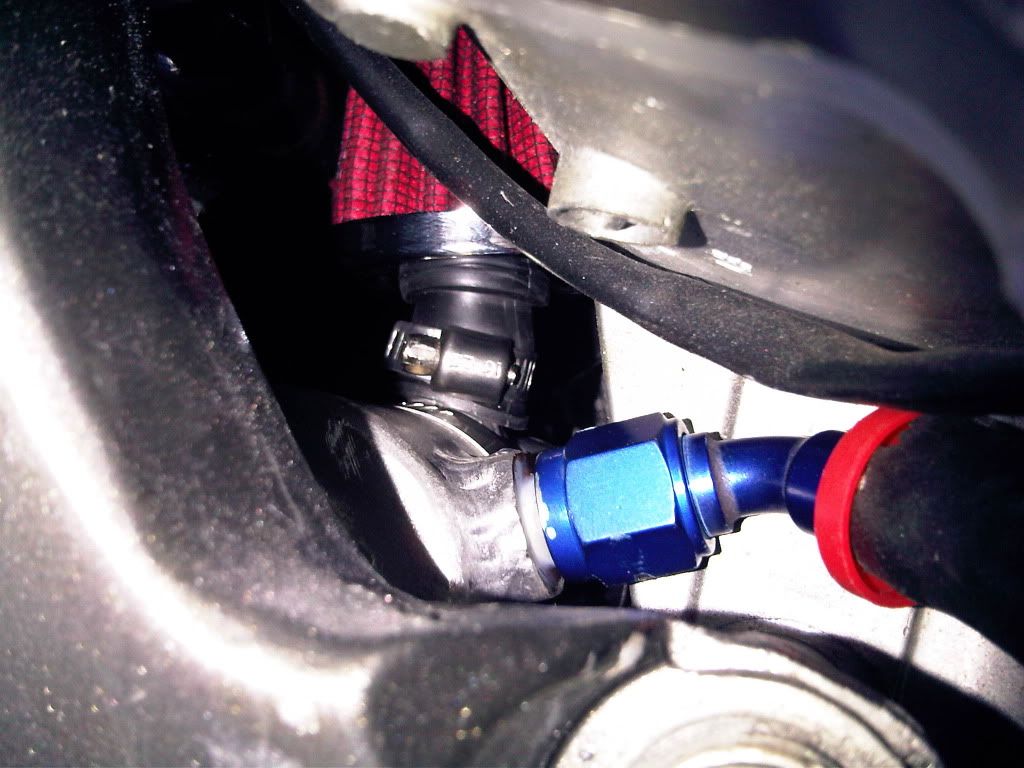

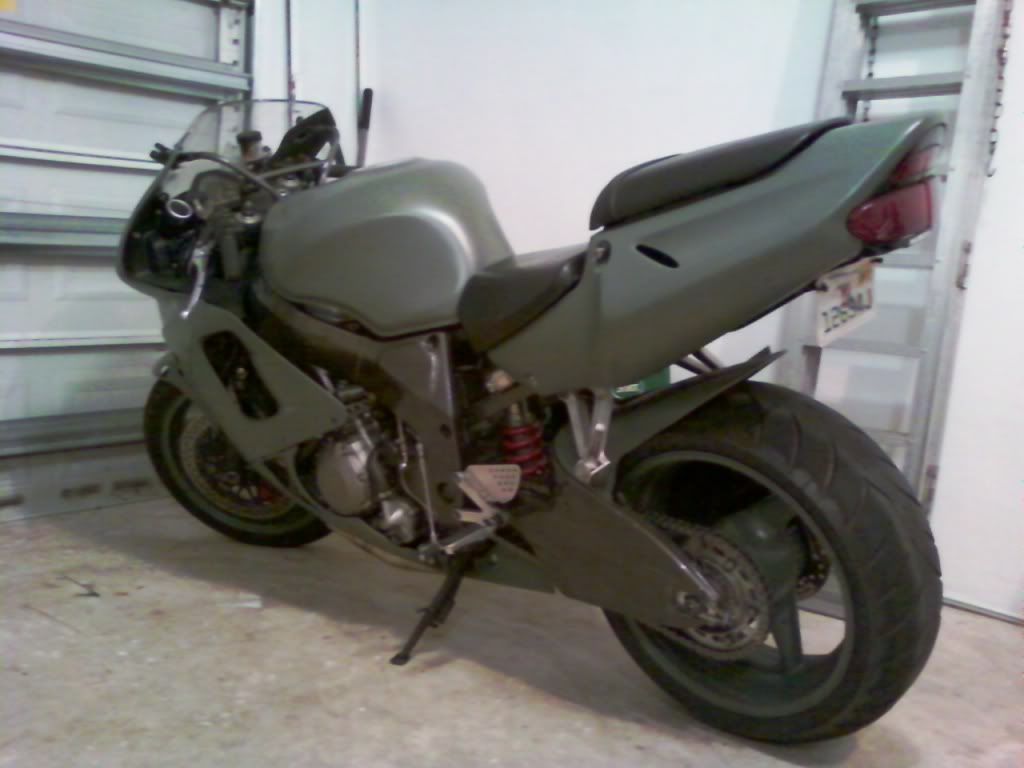

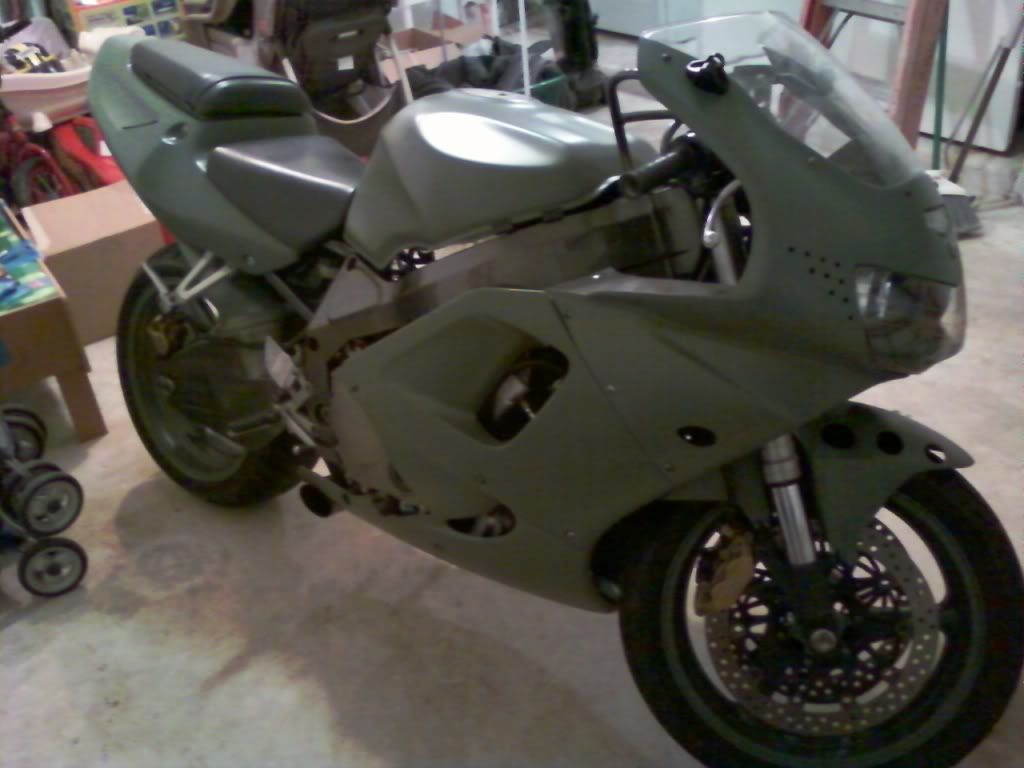

some pics of the bike shes done for now more stuff to be done soon lets say 6 gear about 130 -140 it brakes the tire loose




I work with marine turbos (cruise ship cargo big as ur engine and bigger ) we bought a kempi machine 450 v is the easierachine to weld alum but cost about 10000 lucky my father inlaw bought it ( his business) lol

Last edited:
I got a few pics of fabrication :)

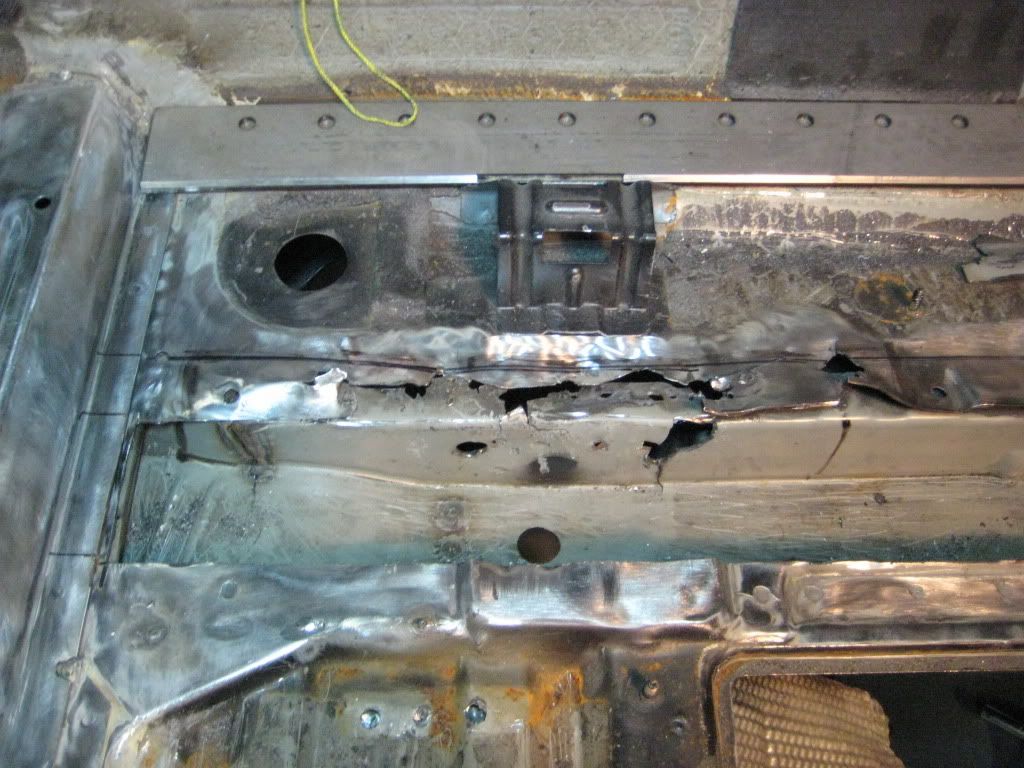

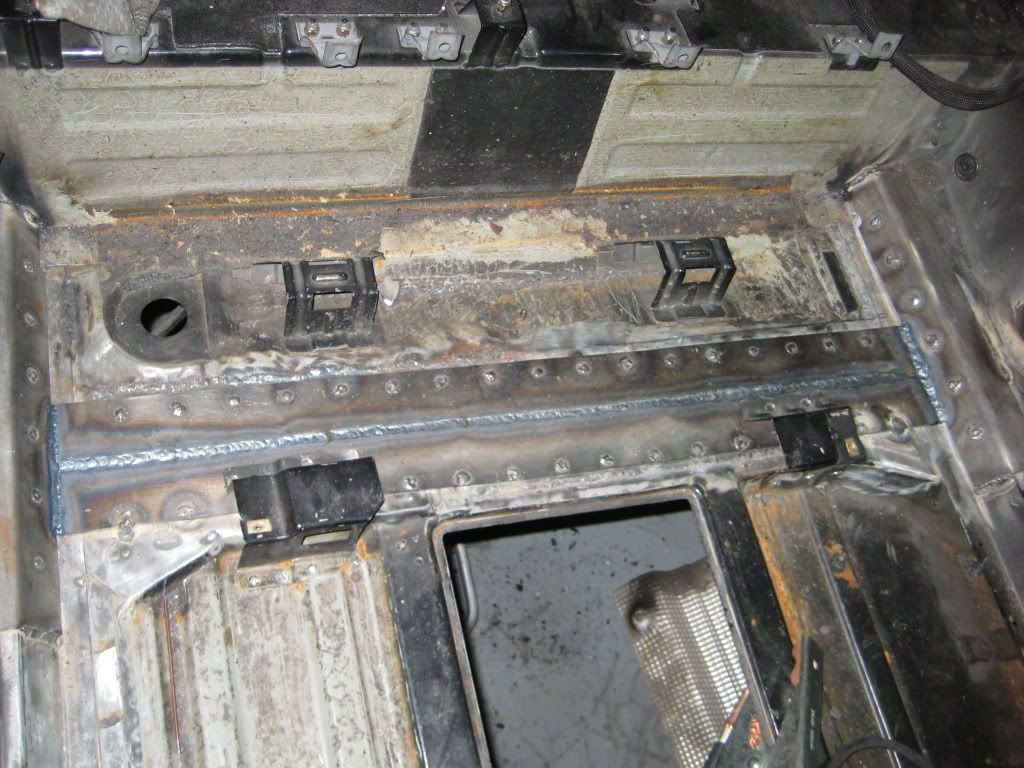

Here's a z3 m-coupe that ripped the single diff mount out and some previous knuckle head "fixed".

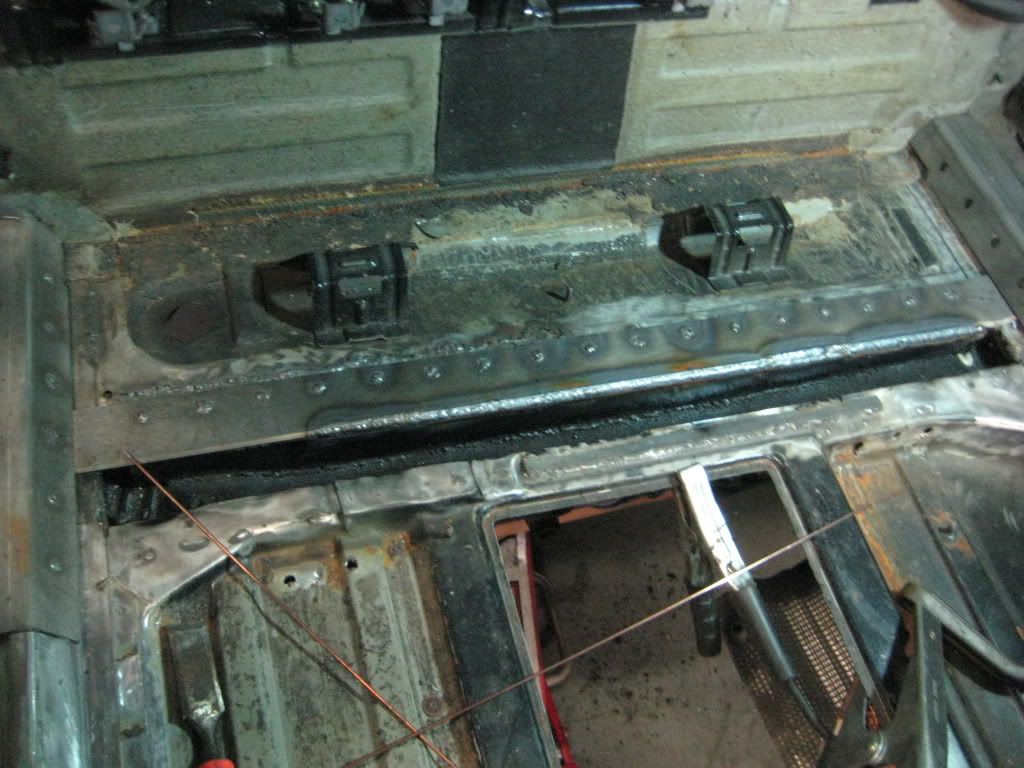

Before...

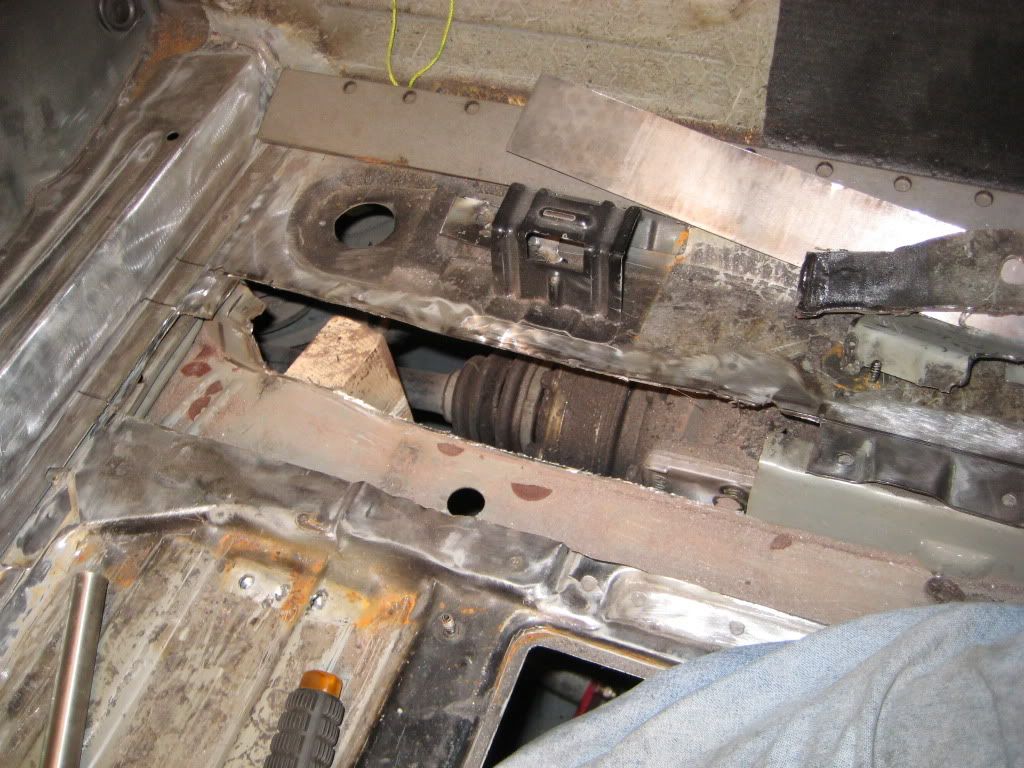

During...

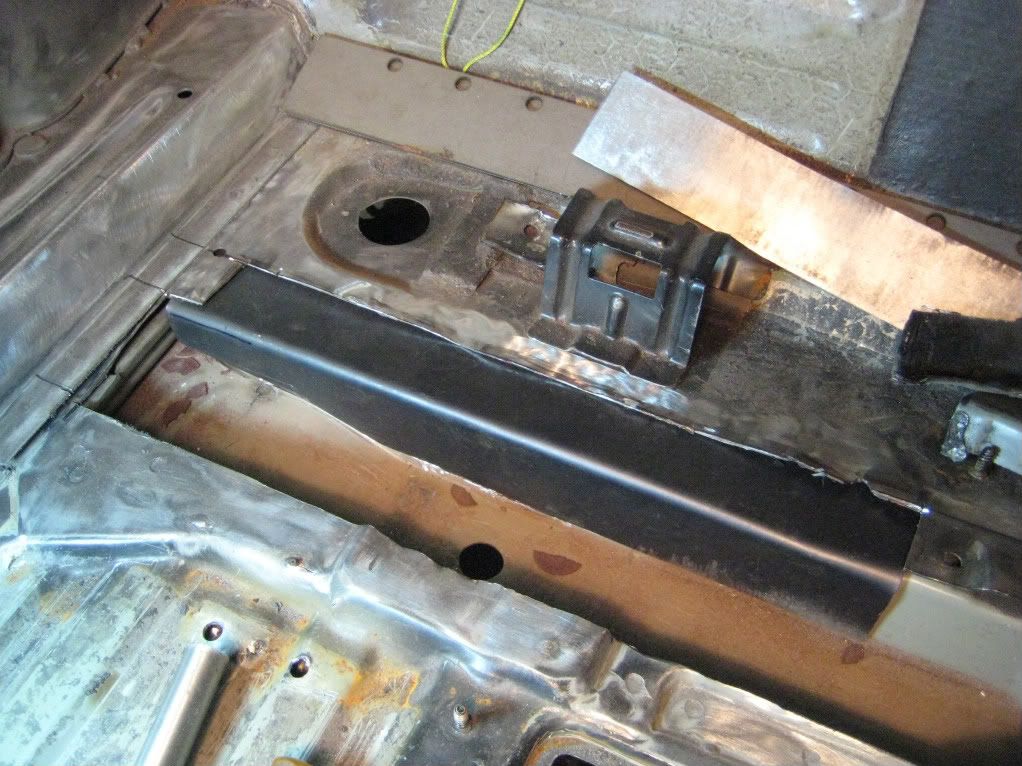

After...

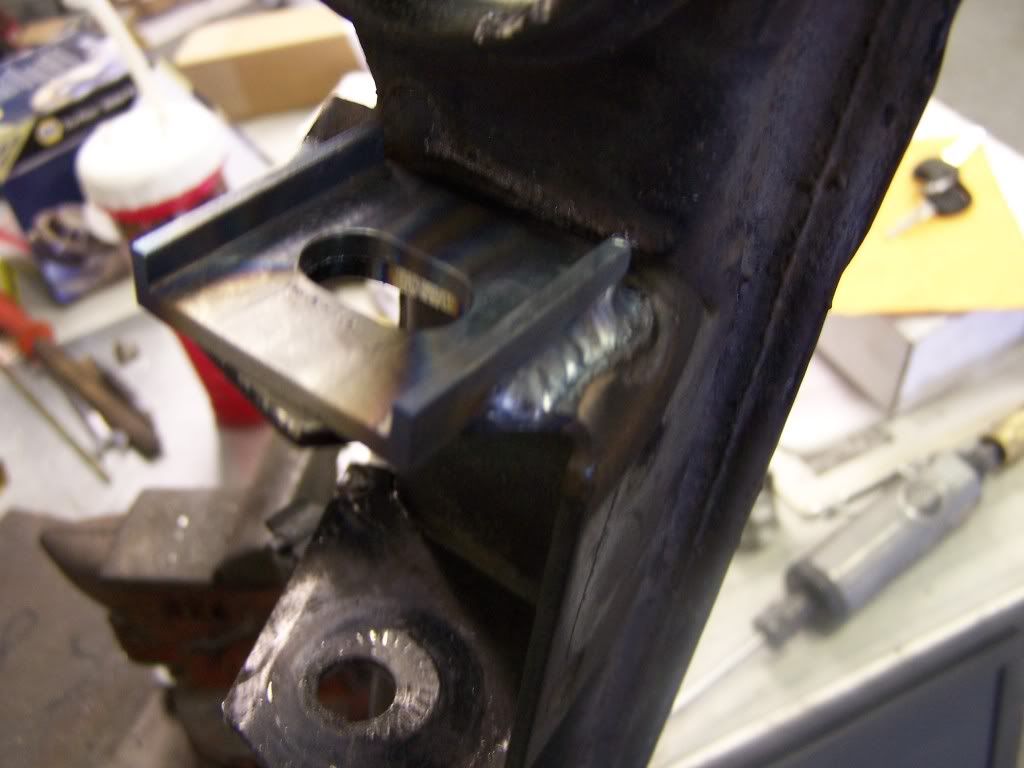

The diff now has a dual mount cover :) (welds look ugly with all the seam sealer lol)



---------- Post added 05-08-2011 at 12:06 AM ---------- Previous post was 05-07-2011 at 11:57 PM ----------

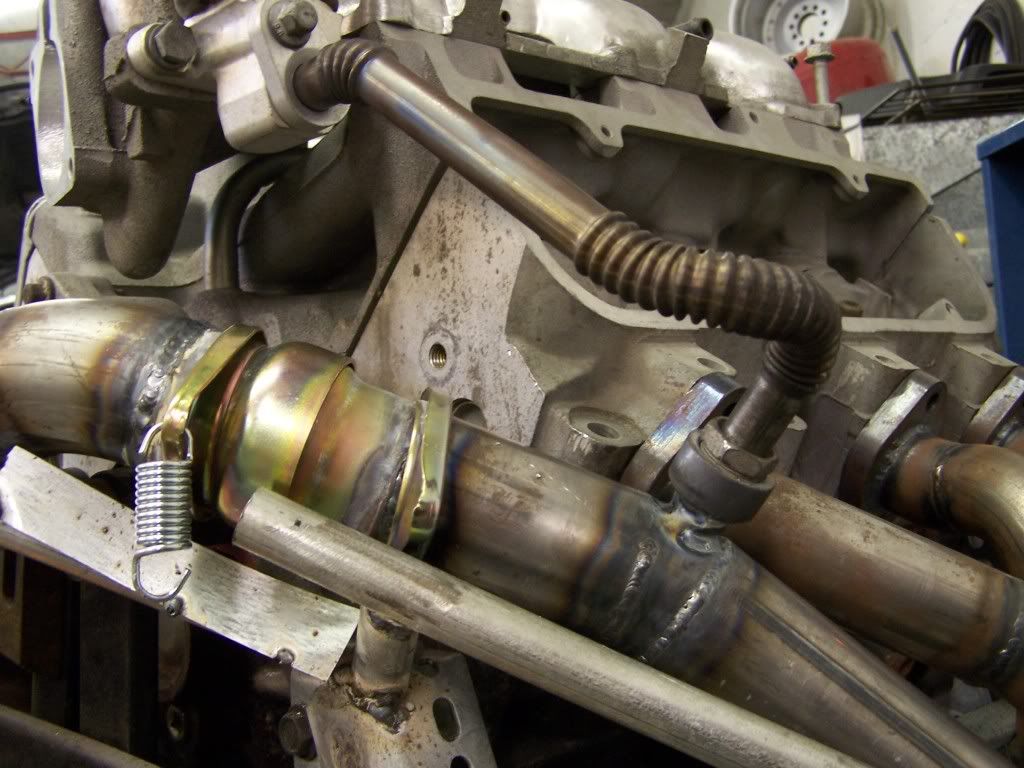

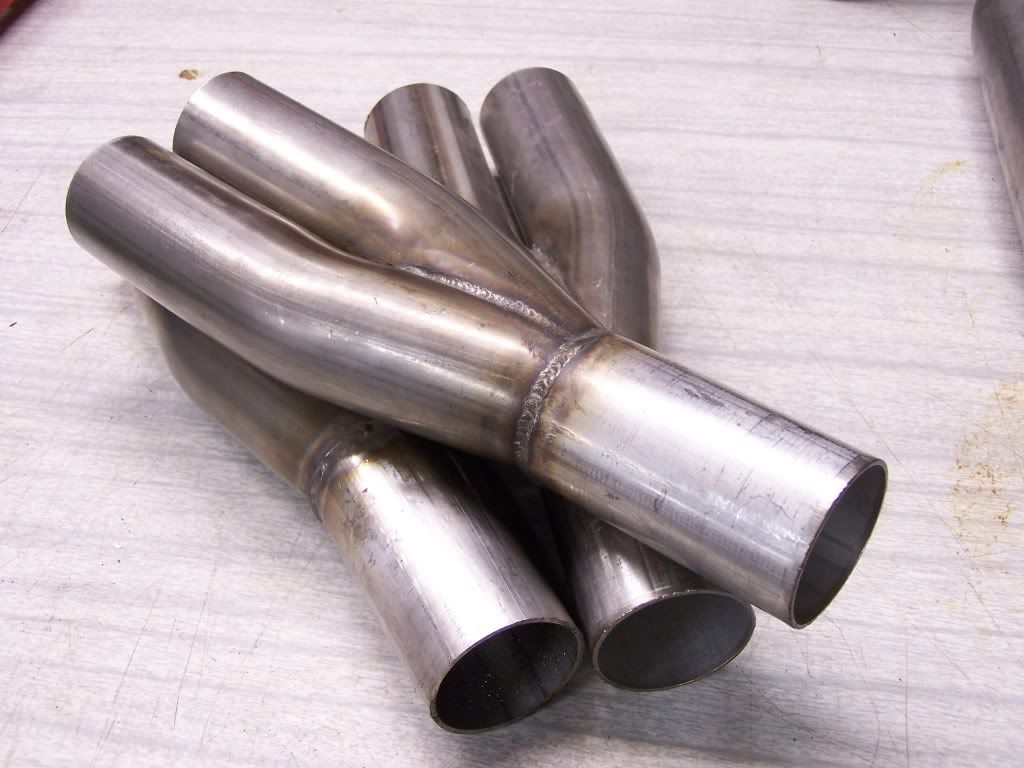

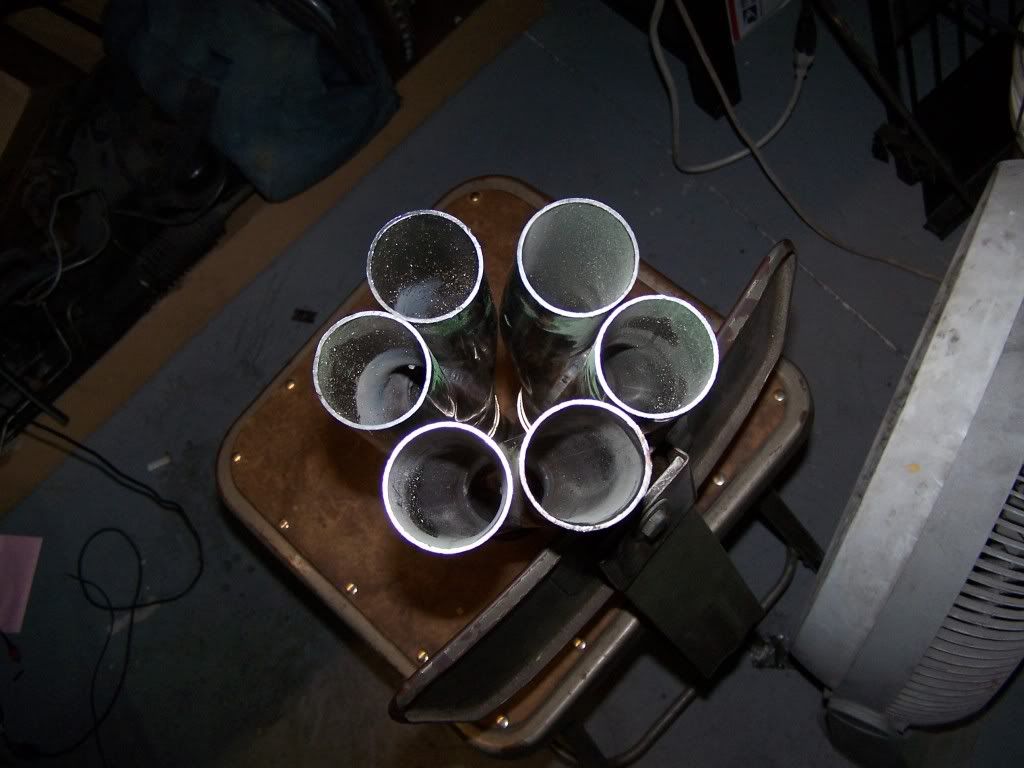

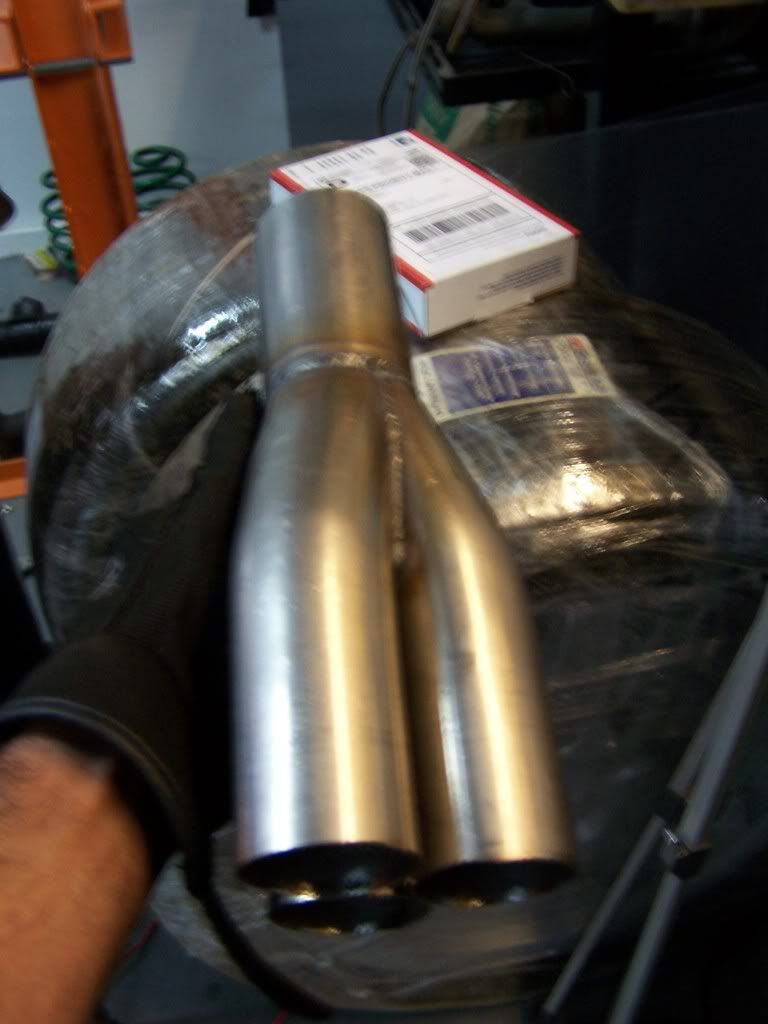

Some headers I made a while back. Equal mid-length for a Chevy Beretta, complete with EGR and o2 locations...







---------- Post added at 12:13 AM ---------- Previous post was at 12:06 AM ----------

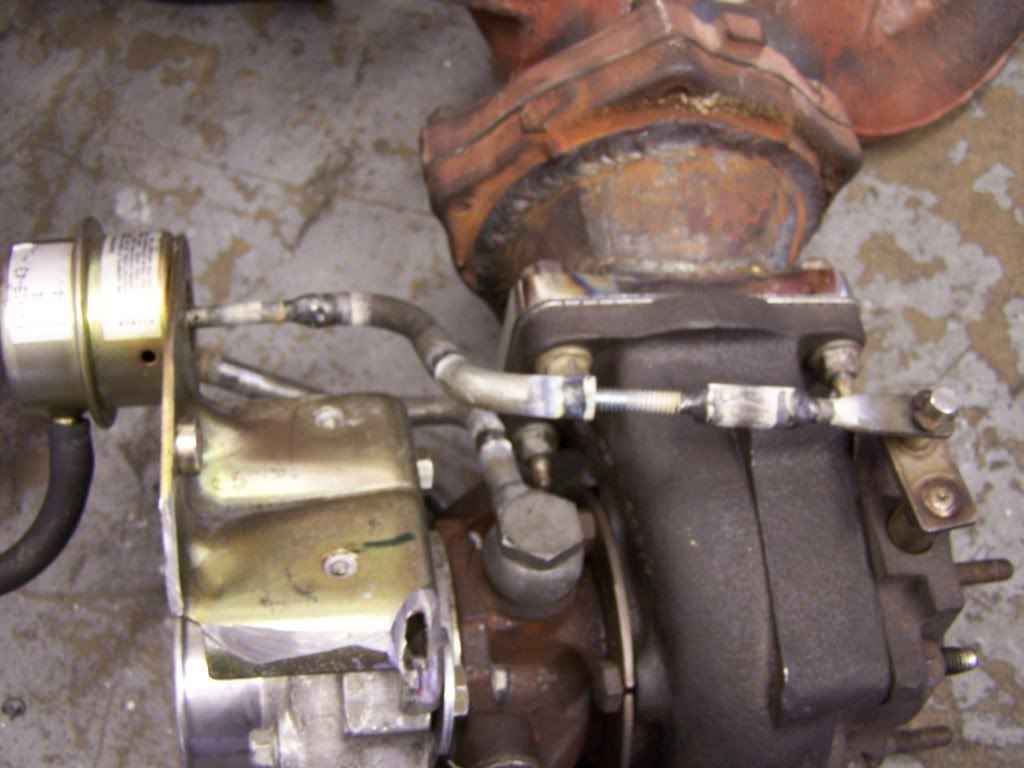

Turbo kit fabbed for a Mazda 3 (turbo kit #8 )

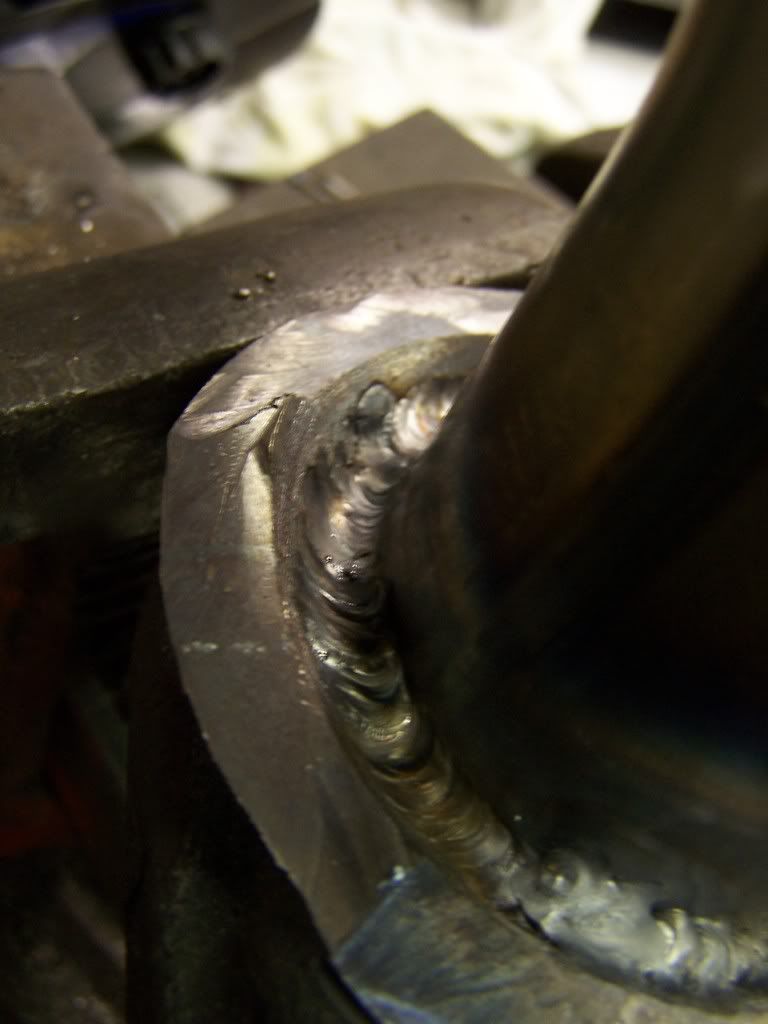

14ga steel welded to cast iron manifold flange, close up.

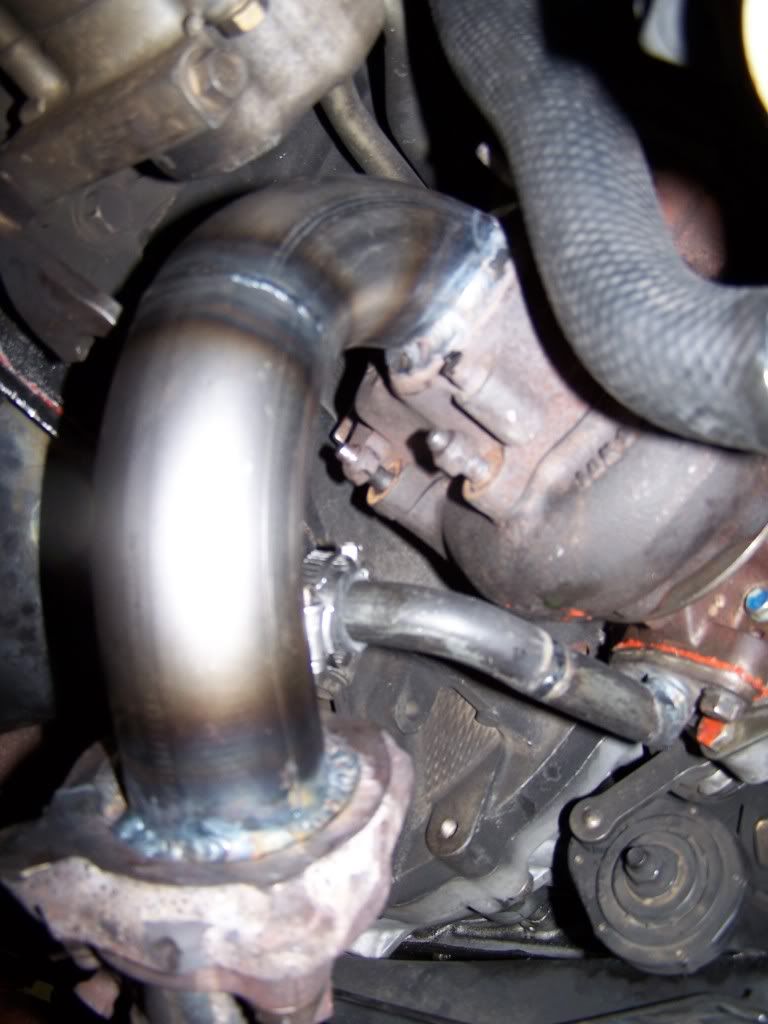

Cast stock exhaust pipes cut and welded to fit.

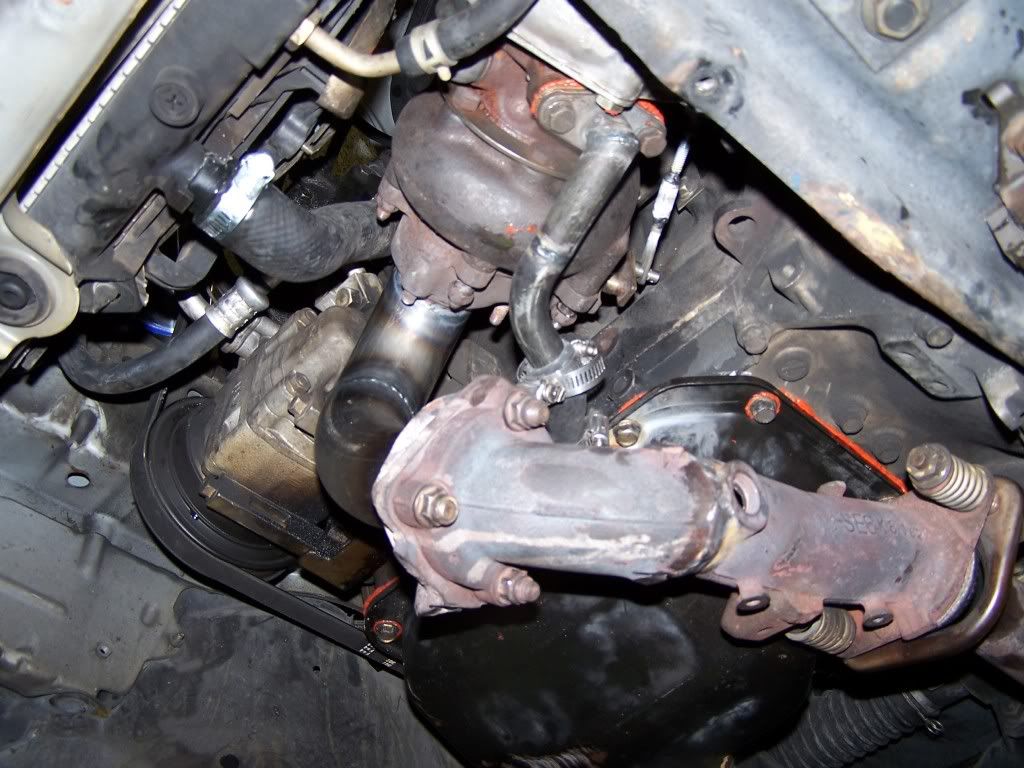

The stock cast cat was turned into a turbo adapter.



---------- Post added at 12:17 AM ---------- Previous post was at 12:13 AM ----------

2nd turbo kit I ever made for a 3rd generation v6 Firebird/Camaro

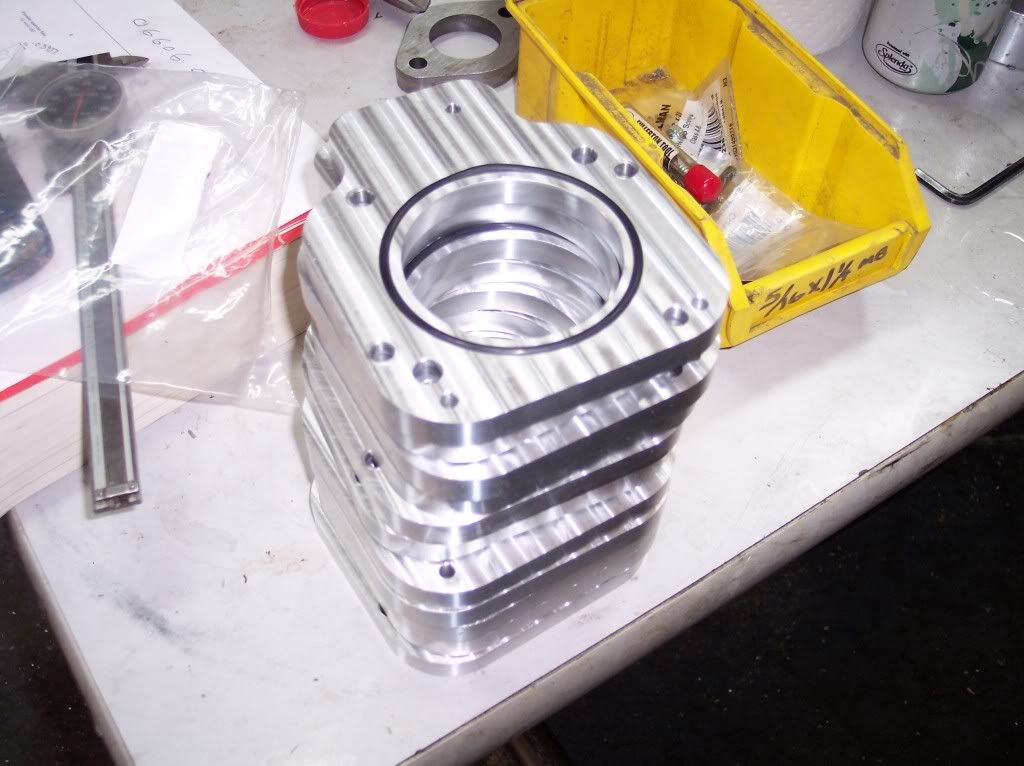

Throttle body adapter to go from 52mm to 65mm TB using a larger GM TB...





---------- Post added at 12:19 AM ---------- Previous post was at 12:17 AM ----------

10 Centrifugal supercharger kits for 3800-powdered Camaro's and Firebird's...









---------- Post added at 12:25 AM ---------- Previous post was at 12:19 AM ----------

Fiero big brake kit.

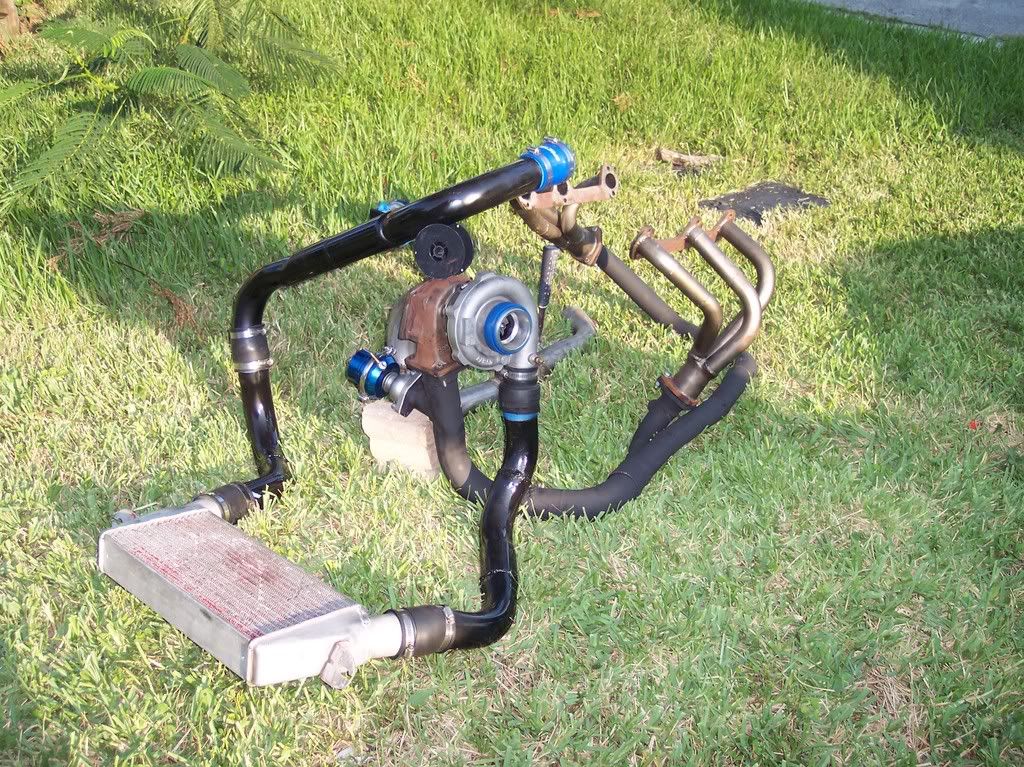

Turbo kit #4, Chevy Corsica that ran 12's with a 3400 v6.

[ame="http://s158.photobucket.com/albums/t87/forcedfirebird/Loners%20Turbo%20install/?action=view&current=100_3490.mp4"]Loners Turbo install :: Startup video by forcedfirebird - Photobucket@@AMEPARAM@@http://vid158.photobucket.com/player.swf?file=http://vid158.photobucket.com/albums/t87/forcedfirebird/Loners%20Turbo%20install/100_3490.mp4@@AMEPARAM@@vid158@@AMEPARAM@@158@@AMEPARAM@@t87/forcedfirebird/Loners%20Turbo%20install/100_3490@@AMEPARAM@@mp4[/ame]

[ame="http://s158.photobucket.com/albums/t87/forcedfirebird/Loners%20Turbo%20install/?action=view&current=100_3493.mp4"]Loners Turbo install :: Test Drive video by forcedfirebird - Photobucket@@AMEPARAM@@http://vid158.photobucket.com/player.swf?file=http://vid158.photobucket.com/albums/t87/forcedfirebird/Loners%20Turbo%20install/100_3493.mp4@@AMEPARAM@@vid158@@AMEPARAM@@158@@AMEPARAM@@t87/forcedfirebird/Loners%20Turbo%20install/100_3493@@AMEPARAM@@mp4[/ame]

---------- Post added at 12:31 AM ---------- Previous post was at 12:25 AM ----------

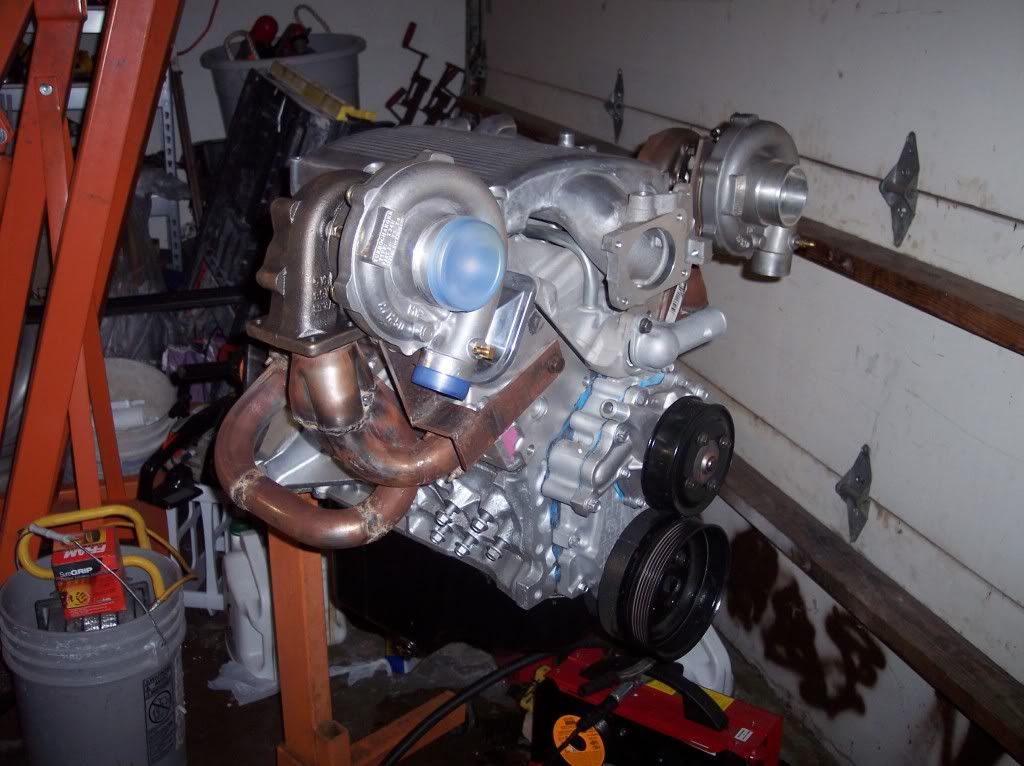

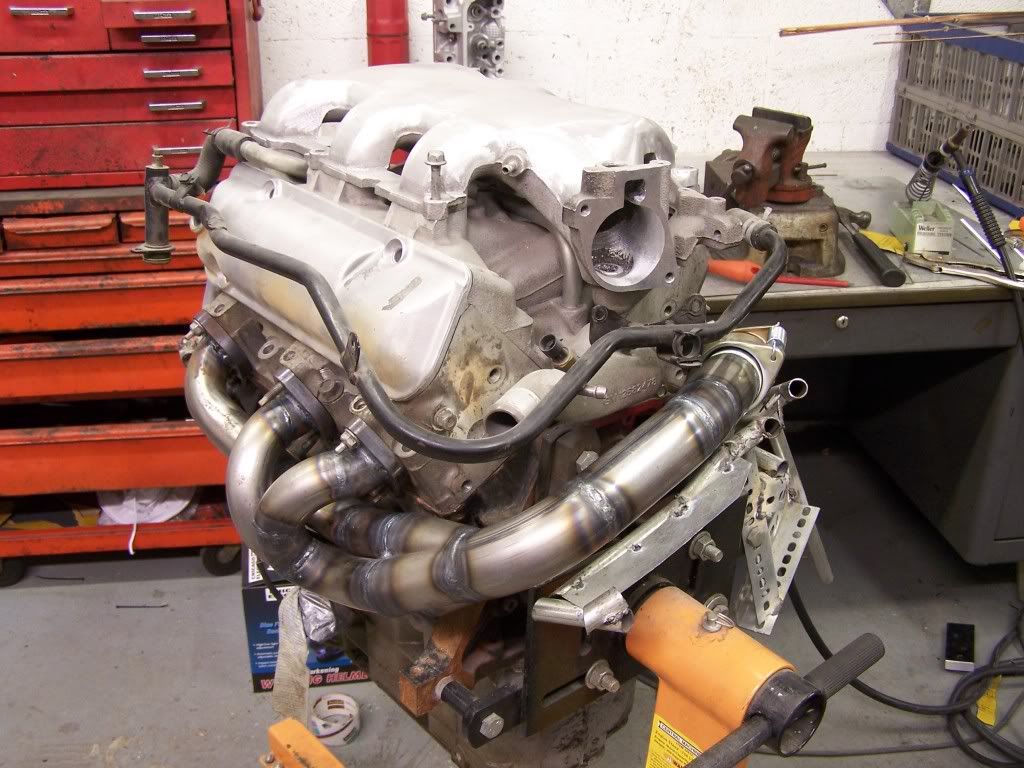

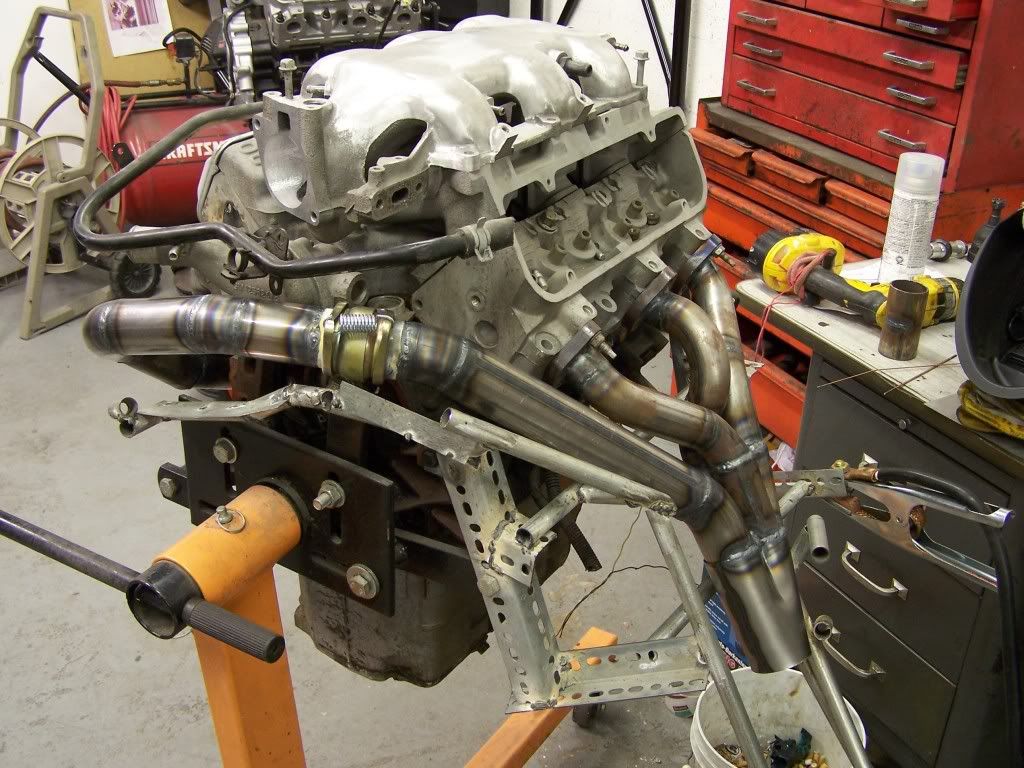

[/COLOR]Twin turbo headers for a v6 Firebird/Camaro

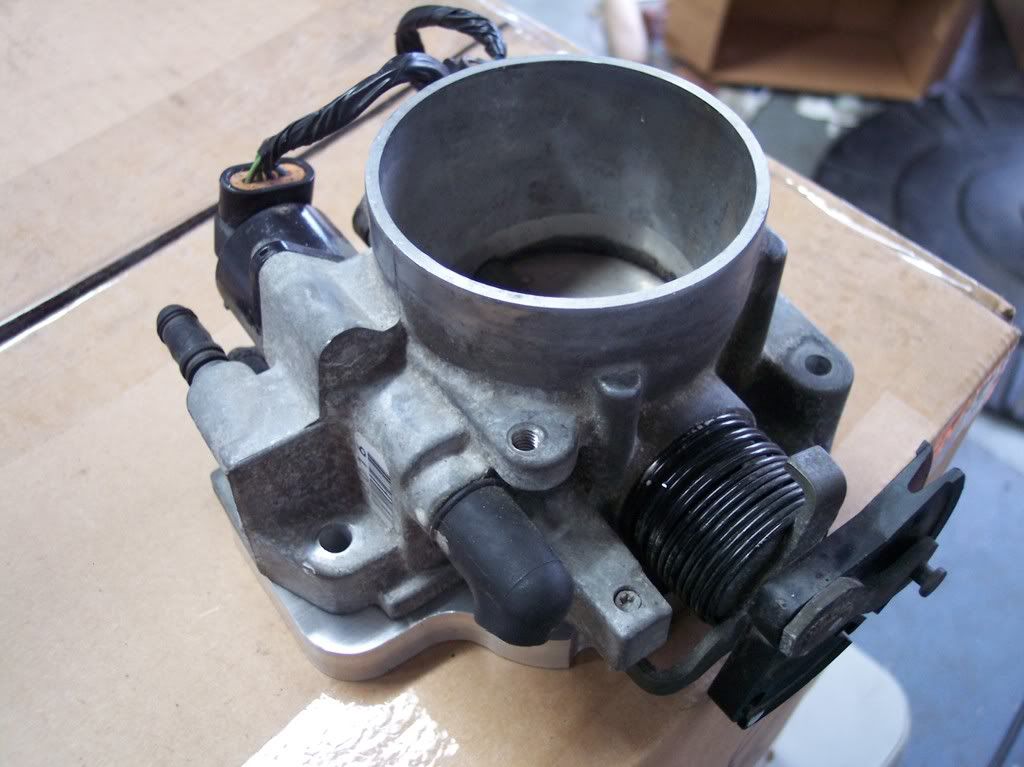

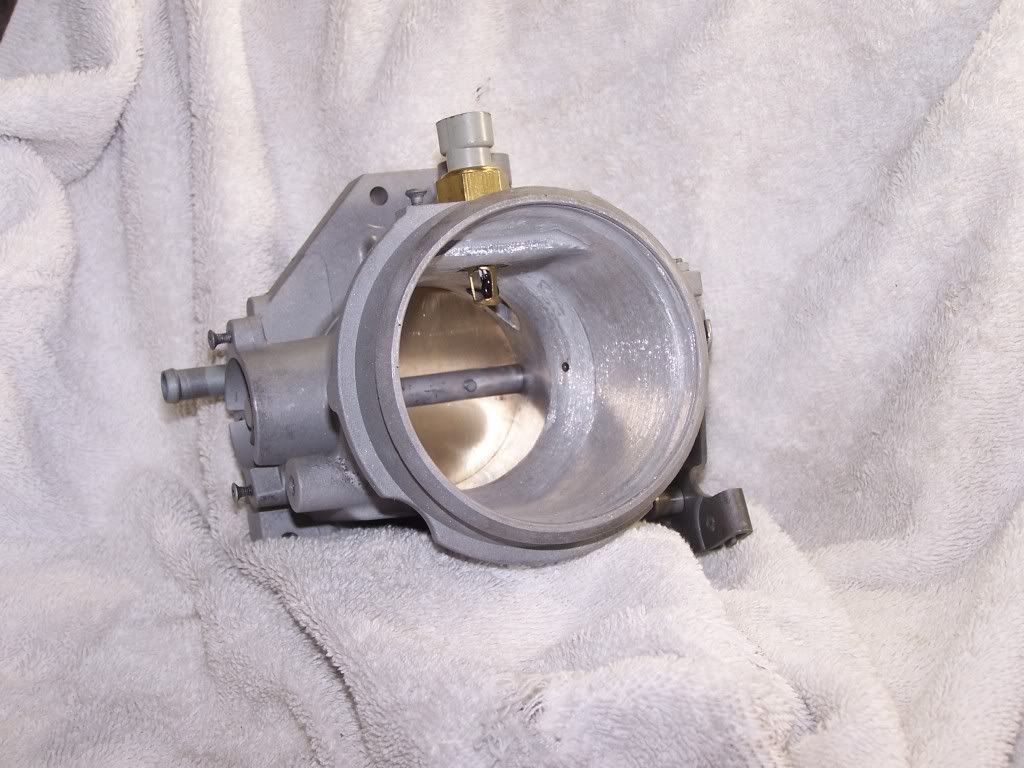

GM 3800 TB with the PCV valve welded shut, ported and IAT sensor port added for a turbo setup.

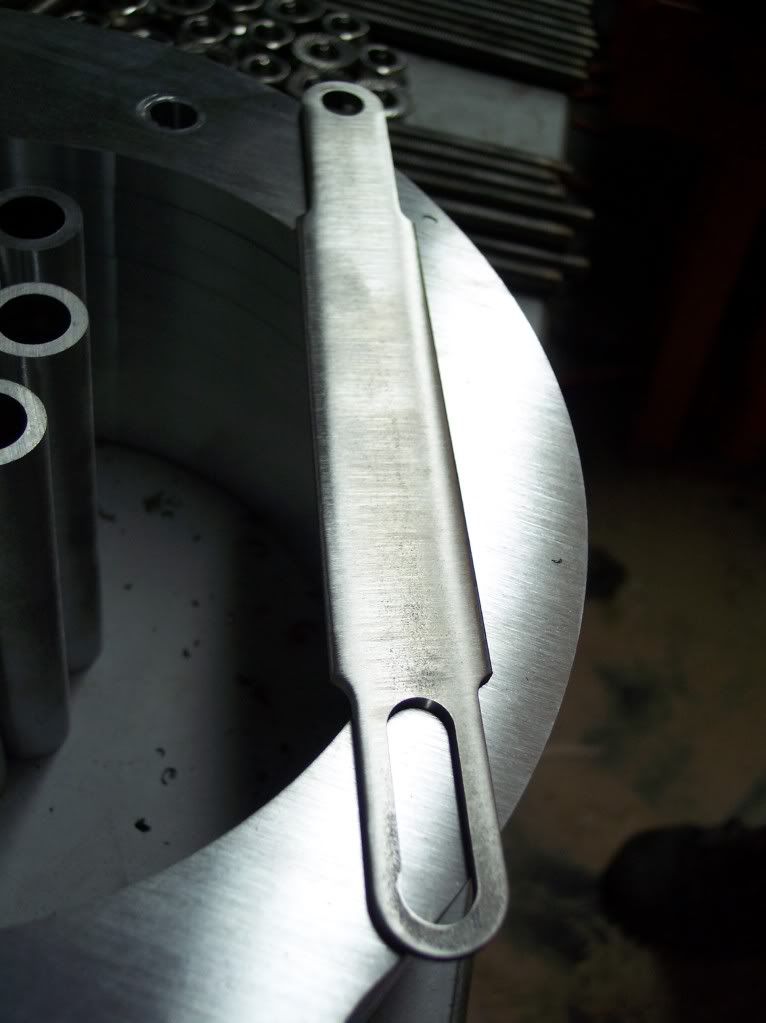

Camber kit for the rear of an e30.

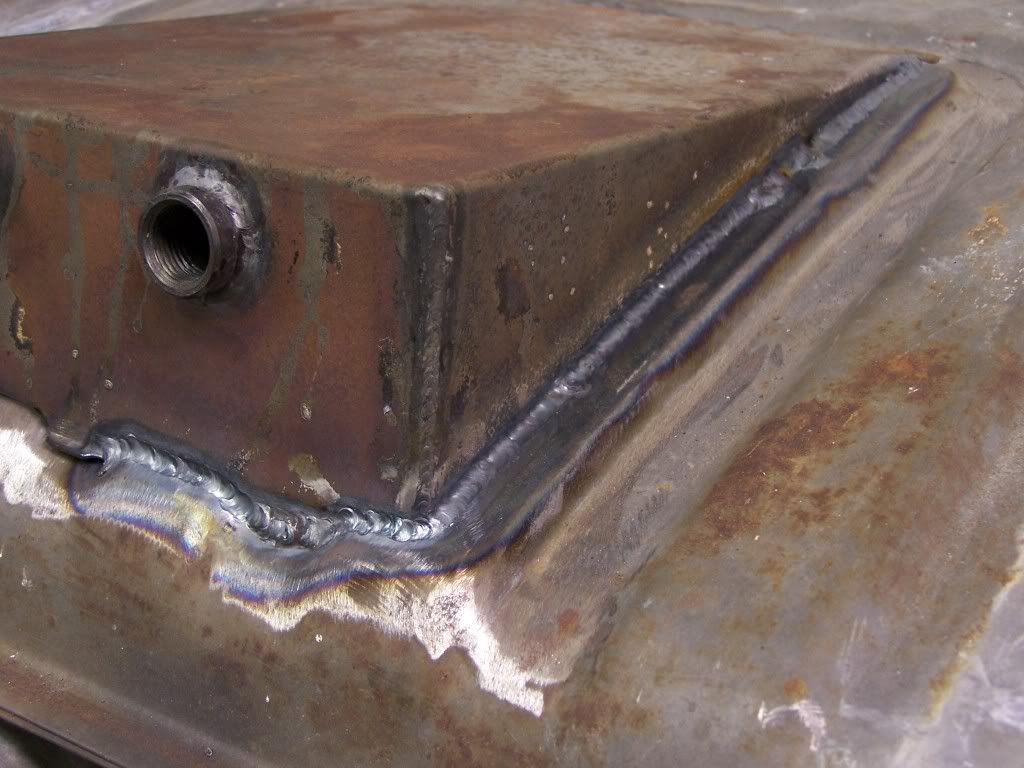

Sump welded on a 1974 Caprice gas tank.



[ame="http://s448.photobucket.com/albums/qq202/Forced_Firebird/Tonys%20Chevy/?action=view&current=tonyschevy001.mp4"]Tonys Chevy :: tonyschevy001.mp4 video by Forced_Firebird - Photobucket@@AMEPARAM@@http://vid448.photobucket.com/player.swf?file=http://vid448.photobucket.com/albums/qq202/Forced_Firebird/Tonys%20Chevy/tonyschevy001.mp4@@AMEPARAM@@vid448@@AMEPARAM@@448@@AMEPARAM@@qq202/Forced_Firebird/Tonys%20Chevy/tonyschevy001@@AMEPARAM@@mp4[/ame]

Last edited:
^^^very impressive bro....very nice work....why u would turbo a corsica is beyond me but shit bro w/e props for gettin it to work lol:bigthumbu

Sr20Vert said:
^^^very impressive bro....very nice work....why u would turbo a corsica is beyond me but shit bro w/e props for gettin it to work lol:bigthumbu
Click to expand...

So people can laugh at the starting line ;)

[ame="http://www.streetfire.net/video/more-corsica-fun_164663.htm"]More Corsica fun - Car Videos on StreetFire[/ame]

[ame="http://www.streetfire.net/video/more-track-fun_166595.htm"]More track fun - Car Videos on StreetFire[/ame]

[ame="http://www.streetfire.net/video/131-109-in-a-corsica_169994.htm"]13.1 @ 109 in a Corsica - Car Videos on StreetFire[/ame]



This is with full interior minus sound deadening, 17" rims, and a huge speaker box in the trunk :)

The trans spilled it's guts (trans #2, 12.9 was on trans #3) at 350whp less than 4k (6750 redline) on a dyno...

Nice!

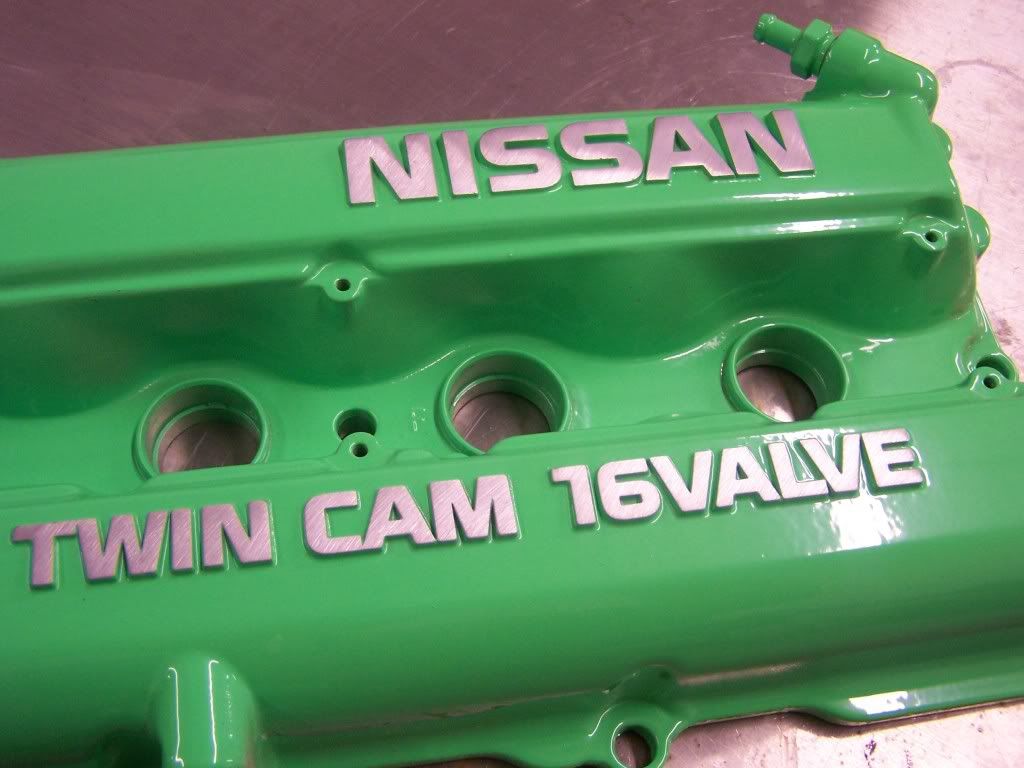

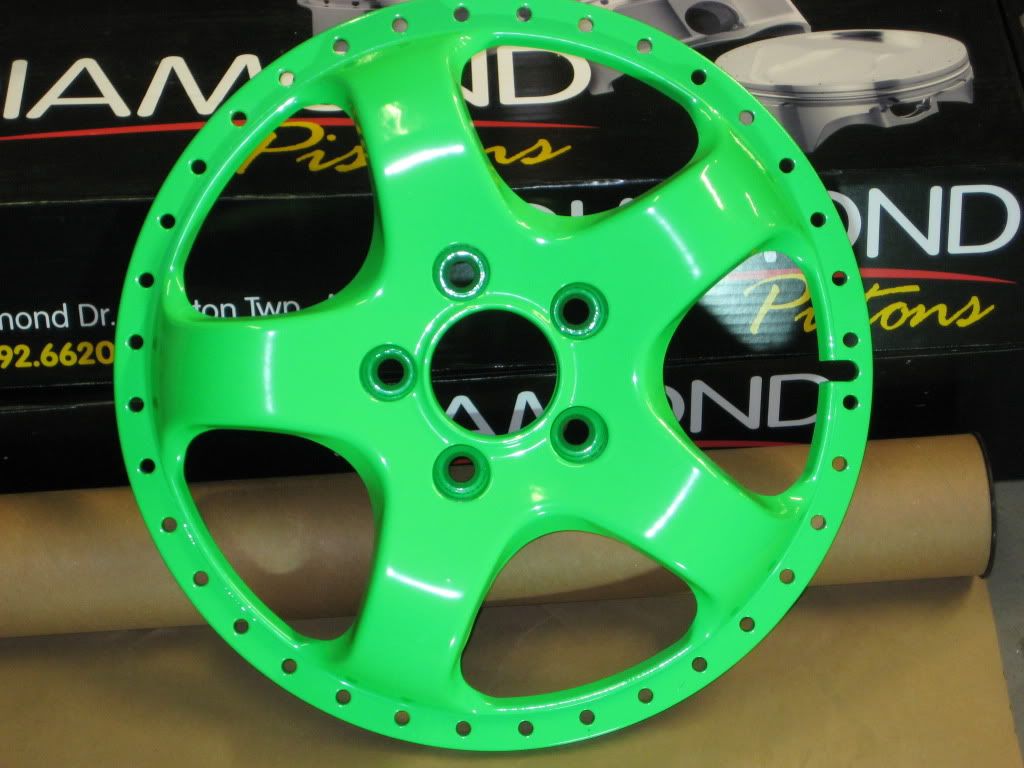

Coated some Equip centers tonight, wish the camera could catch the color as it is. Did a valve cover a while back and you can see it from across the parking lot haha...
