What: Homemade Engine Mounts
Why: Alternative to Hockey Pucks, Nismo Mounts or Stock Mounts
Time: 1 hour
Tools Needed:
Drill with 3/8th Metal Drill Bit
Table Saw or Hand Saw
Tape Measure
Chalk

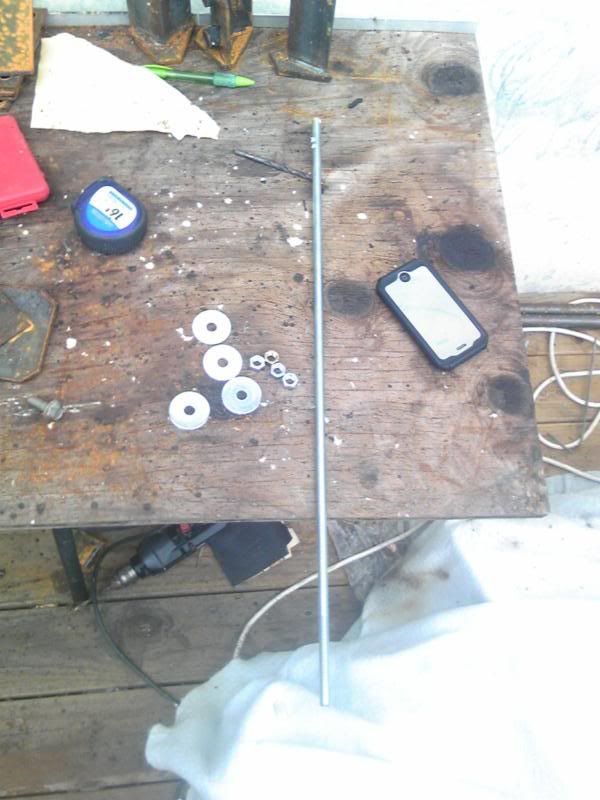

Materials Needed:
1 - Tube of super glue

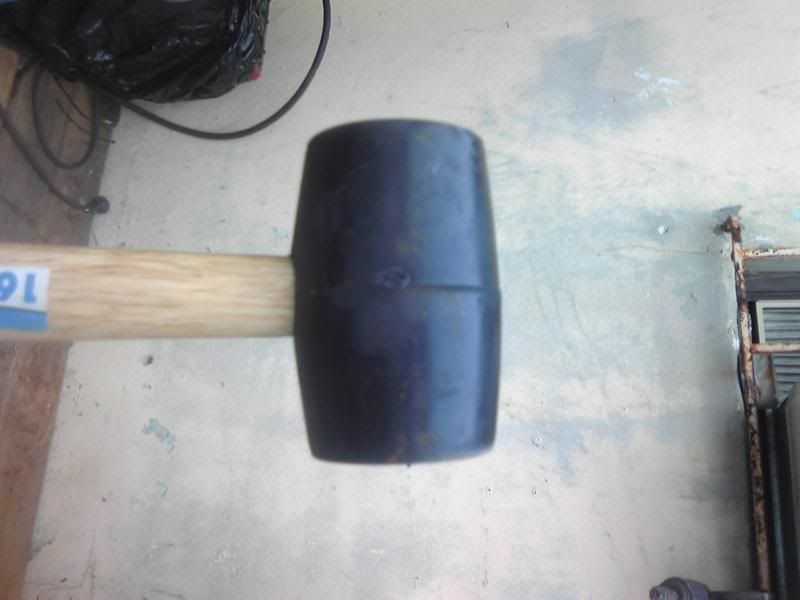

2 - 16oz Rubber Mallets
1 - 2ft length of 3/8ths all thread

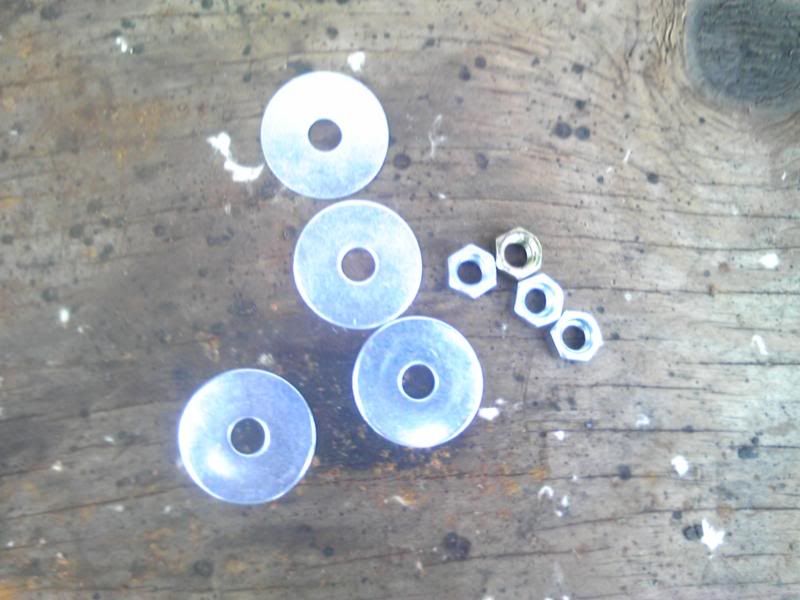

4 - 3/8ths Nuts
8 - Washers (only 4 pictured)
Step 1

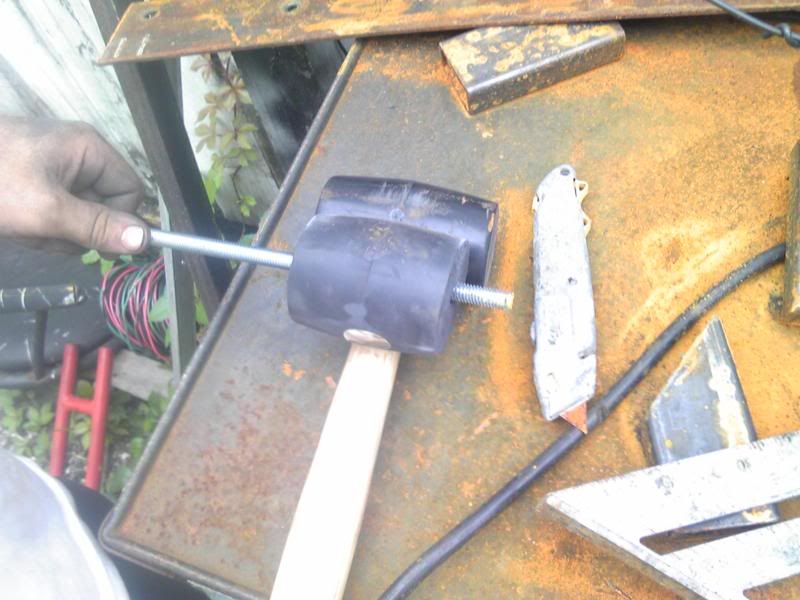

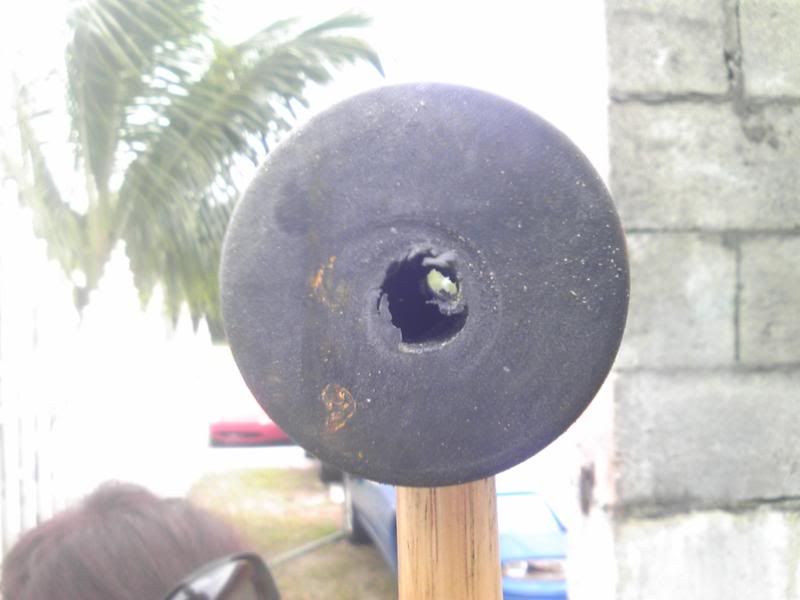

Take your drill and drill a hole straight through the rubber mallet width-wise.
(there's metal in the middle so make sure you have the proper bit)
Step 2

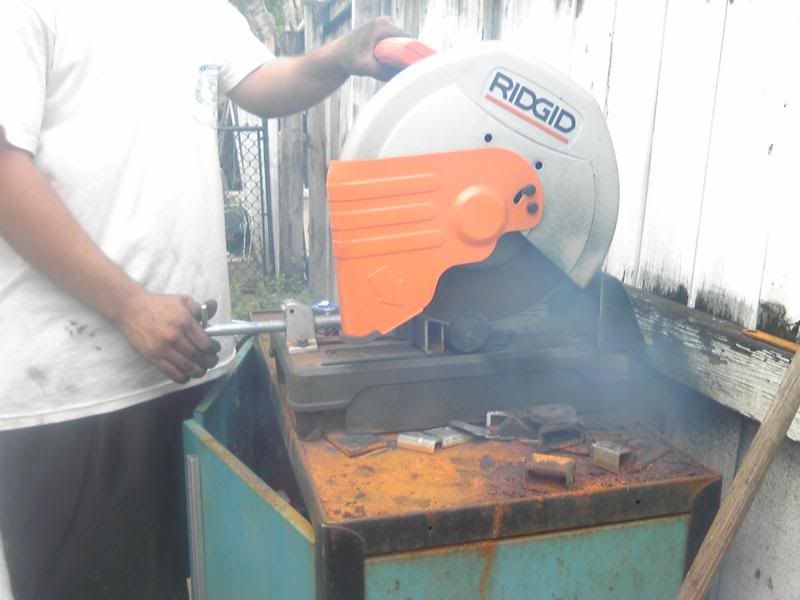

Then Cut the handles off

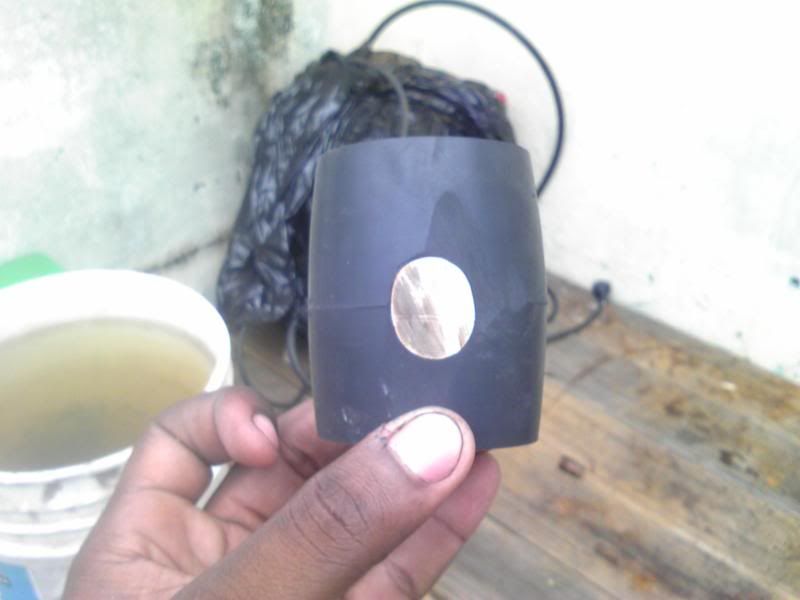

So they look like this
Step 3

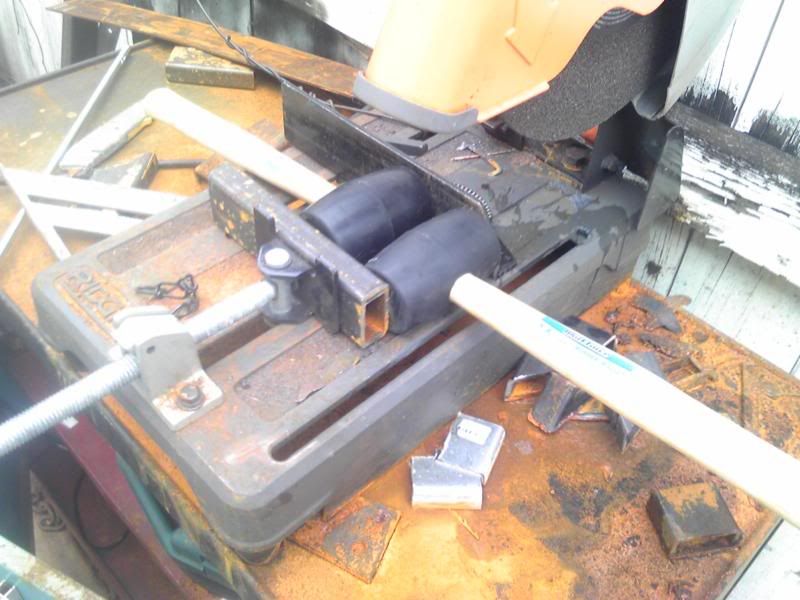

measure the rubber and cut off rubber it until it measures 3 inches
(you can go smaller to lower the motor if you have clearence issues)
like so
Step 4
Cut 2 5&1/4inch lengths of all thread
Step 5

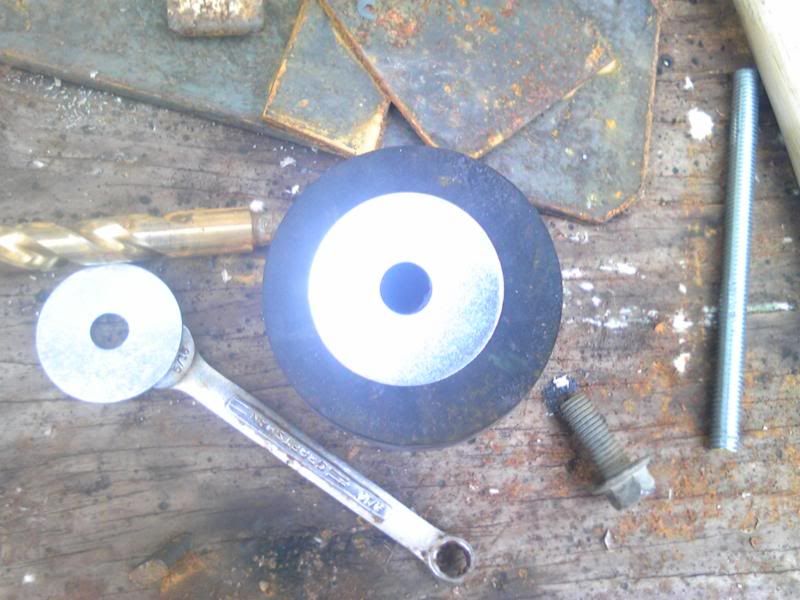

Super Glue your washers around the holes on the rubber
Step 6

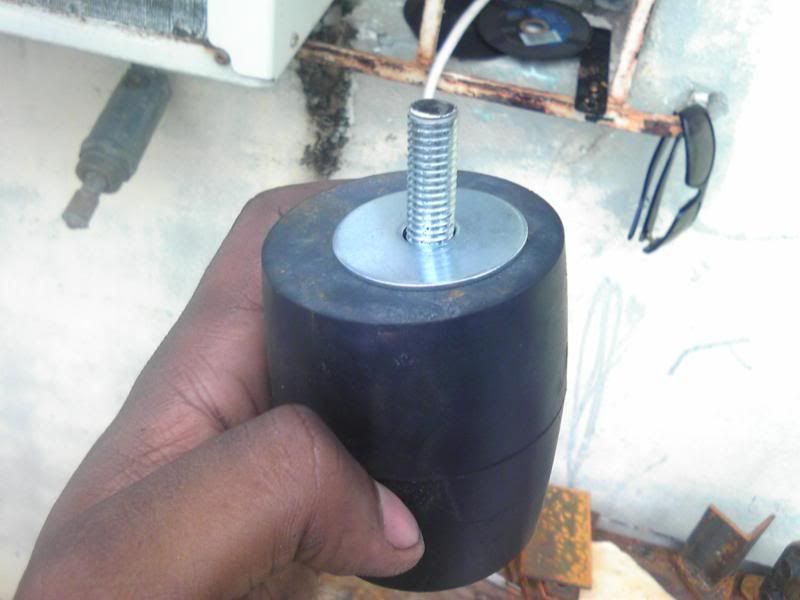

Push your 5&1/4inch lengths of all thread through the rubber
Step 7
screw nuts on each side

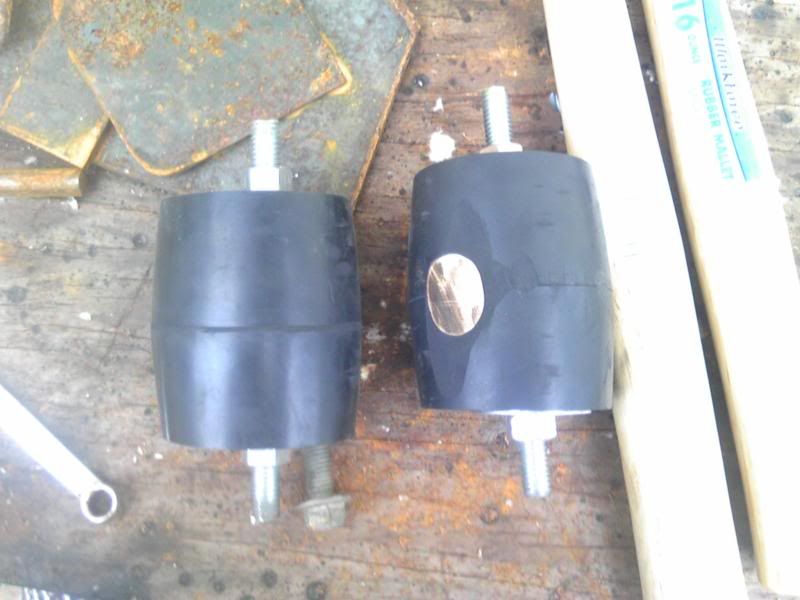

Final Product
i chose to leave them bare, you can also wrap them in heavy duty tape or what not.
