Head Gasket Replacement

[Corey]

does anyone know the site for the DIY head gasket replacement on a 89 240 single cam? i looked everywhere and cant seem to find it.



[SAS]

pull head replace gasket install head LMAO



[D. Davaine]

damit he beat me too it

remember to roll the engine to top dead center on number one piston and remember the position of the sprocket theres a dot or a indent on the sprocket and a silver or crome link on the chain

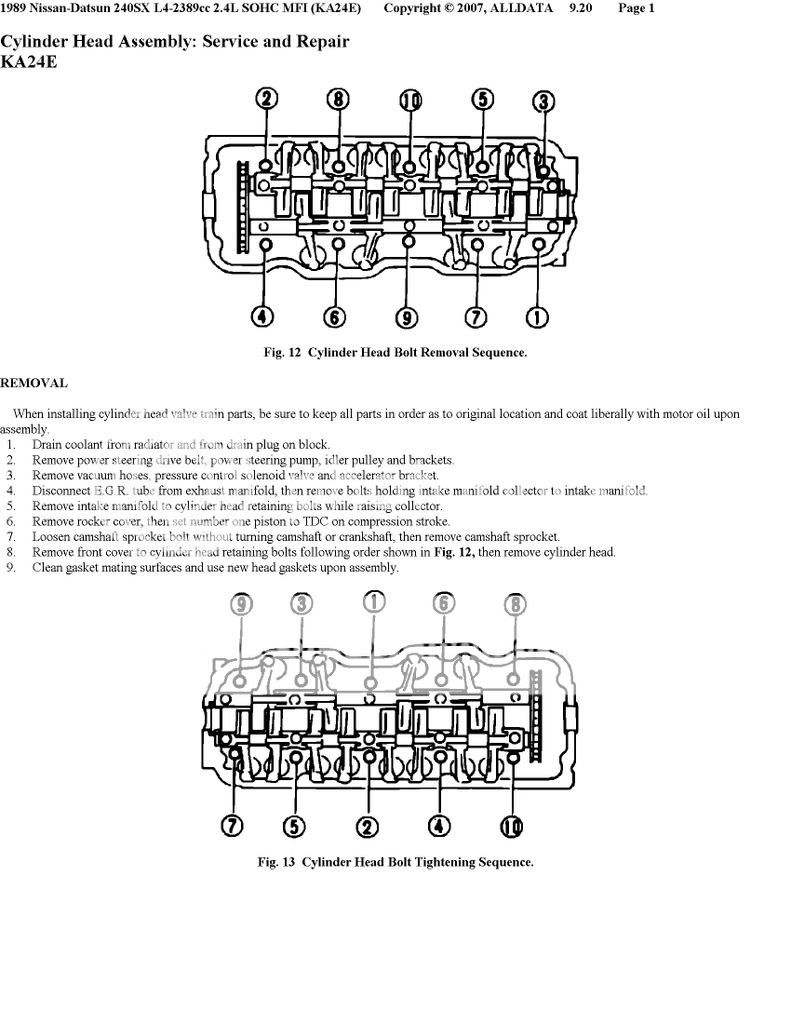

the head bolt sequence is look at fig 13
a. 22ft lbs
b. 58ft lbs
c. loosen all the bolts completely
d. 22ft lbs
e. turn the bolts 80-85 degrees or to 54-61ft lbs



[Corey]

damit he beat me too it

remember to roll the engine to top dead center on number one piston and remember the position of the sprocket theres a dot or a indent on the sprocket and a silver or crome link on the chain
the head bolt sequence is look at fig 13
a. 22ft lbs
b. 58ft lbs
c. loosen all the bolts completely
d. 22ft lbs
e. turn the bolts 80-85 degrees or to 54-61ft lbs

thanks alot!



[D. Davaine]

damn i cant feel my eyes am staring at the screen for too long



[bigdreams05]

remember to roll the engine to top dead center on number one piston and remember the position of the sprocket theres a dot or a indent on the sprocket and a silver or crome link on the chain
the head bolt sequence is look at fig 13
a. 22ft lbs
b. 58ft lbs
c. loosen all the bolts completely
d. 22ft lbs
e. turn the bolts 80-85 degrees or to 54-61ft lbs

Don't forget to do step C. One tightening is not enough. It is pivotal to loosen and tighten again.



[Locko]

damn i cant feel my eyes am staring at the screen for too long

man you are always great help !! :bigthumbu:bigthumbu



[D. Davaine]

no iam a pain in the ass
